An "insulator" for a RadioTrackWrapper - if a RadioOutput is inside the bounds of this object, the affected tracks on it will become quieter. More...

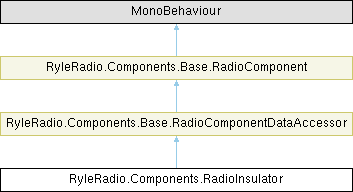

Inheritance diagram for RyleRadio.Components.RadioInsulator:

Public Member Functions
float	GetPower (Vector3 _position)
	Gets the power of this insulator at a specific position.
Public Member Functions inherited from RyleRadio.Components.Base.RadioComponentDataAccessor
override void	Init ()
	Initialises this component and links its affected tracks.
Public Member Functions inherited from RyleRadio.Components.Base.RadioComponent
void	Init ()
	Initialises this component.

Public Attributes
Vector3	innerBoxSize = Vector3.one * 0.9f
	The size of the inner box of the insulator- inside of this box, insulation is the highest.
Vector3	outerBoxSize = Vector3.one
	The size of the outer box of the insulator- outside of this box, insulation is 0- between this and the inner box, insulation is between [0 - 1].

Protected Member Functions
override void	AssignToTrack (RadioTrackWrapper _track)
	Links this insulator to a track.
override void	RemoveFromTrack (RadioTrackWrapper _track)
	Unlinks this insulator from a track.
Protected Member Functions inherited from RyleRadio.Components.Base.RadioComponentDataAccessor
void	AssignToTrack (RadioTrackWrapper _track)
	Links this component to a track.
void	RemoveFromTrack (RadioTrackWrapper _track)
	Unlinks this component from a track.
virtual void	AccessorInit ()
	Allows extra code for initialization so that Init() can still be called.

Properties
Vector3	InnerBoxSizeAdjusted `[get, private set]`
	The innerBoxSize but adjusted with transform.localScale in Update()
Vector3	OuterBoxSizeAdjusted `[get, private set]`
	The outerBoxSize but adjusted with transform.localScale in Update()
bool	ShowApplyToAllOutputs `[get]`
	Shows applyToAllOutputsOutside when the x-value of insulation is greater than 0.
Properties inherited from RyleRadio.Components.Base.RadioComponentDataAccessor
List< string >	TrackNames `[get]`
	The list of tracks on the RadioData that this component can choose from.
Action< RadioComponent >	OnInit = new(_ => { }) `[get, set]`
	Event called when the component is initialized.
Properties inherited from RyleRadio.Components.Base.RadioComponent
RadioData	Data `[get]`
	Read-only accessor for data.

Private Member Functions
void	Update ()
	Updates cached position and adjusted box sizes.

Private Attributes
Vector2	insulation = new(0, 0.5f)
	The max and min insulation in the outer and inner boxes.
AnimationCurve	insulationCurve = AnimationCurve.Linear(0, 0, 1, 1)
	A curve that defines insulation between the inner and outer boxes- the x-value is how far between the inner and outer boxes the output is.
bool	applyToAllOutputsOutside = false
	Effectively makes this insulator global- when this is true, any output outside of the outer box's range will be affected by the x-value on insulation.
Vector3	cachedPos
	The position of the insulator in the previous frame. We cannot access transform.position in the audio thread, so we cache it to this.

Additional Inherited Members
Protected Attributes inherited from RyleRadio.Components.Base.RadioComponent
RadioData	data
	The RadioData (aka just radio) that this component is linked to.

Detailed Description

An "insulator" for a RadioTrackWrapper - if a RadioOutput is inside the bounds of this object, the affected tracks on it will become quieter.

There aren't really any real-world analogues for the strength of an insulator like this- think of it like putting a radio in a Faraday cage or something I suppose

This also has custom editor stuff in RadioInsulatorEditor

Definition at line 17 of file RadioInsulator.cs.

Member Function Documentation

◆ AssignToTrack()

override void RyleRadio.Components.RadioInsulator.AssignToTrack ( RadioTrackWrapper _track )

protected

Links this insulator to a track.

Parameters

_track The track to link to

Definition at line 91 of file RadioInsulator.cs.

◆ GetPower()

float RyleRadio.Components.RadioInsulator.GetPower ( Vector3 _position )

Gets the power of this insulator at a specific position.

Parameters

_position The position to evaluate with

Returns: The insulation multiplier at the position. The lower the number, the stronger the insulation- it's a multiplier intended to shrink the samples rather than grow them

Definition at line 112 of file RadioInsulator.cs.

Referenced by RyleRadio.Tracks.RadioTrackPlayer.GetInsulation().

◆ RemoveFromTrack()

override void RyleRadio.Components.RadioInsulator.RemoveFromTrack ( RadioTrackWrapper _track )

protected

Unlinks this insulator from a track.

Parameters

_track The track to unlink from

Definition at line 101 of file RadioInsulator.cs.

◆ Update()

void RyleRadio.Components.RadioInsulator.Update ( )

private

Updates cached position and adjusted box sizes.

Definition at line 77 of file RadioInsulator.cs.

Member Data Documentation

◆ applyToAllOutputsOutside

bool RyleRadio.Components.RadioInsulator.applyToAllOutputsOutside = false

private

Effectively makes this insulator global- when this is true, any output outside of the outer box's range will be affected by the x-value on insulation.

This only shows when the x-value of insulation is above 0

Definition at line 55 of file RadioInsulator.cs.

Referenced by GetPower().

◆ cachedPos

Vector3 RyleRadio.Components.RadioInsulator.cachedPos

private

The position of the insulator in the previous frame. We cannot access transform.position in the audio thread, so we cache it to this.

Definition at line 60 of file RadioInsulator.cs.

Referenced by GetPower(), and Update().

◆ innerBoxSize

Vector3 RyleRadio.Components.RadioInsulator.innerBoxSize = Vector3.one * 0.9f

The size of the inner box of the insulator- inside of this box, insulation is the highest.

Definition at line 23 of file RadioInsulator.cs.

Referenced by Update().

◆ insulation

Vector2 RyleRadio.Components.RadioInsulator.insulation = new(0, 0.5f)

private

The max and min insulation in the outer and inner boxes.

If an output is on the edge of the outer box, insulation will be the x-value here. If an output is inside the inner box, insulation will be the y-value. If an output is between the inner and outer boxes, it will be somewhere between the x and y values according to the insulationCurve

If the x-value is above 0, you might want to toggle applyToAllOutputsOutside so this becomes global

Definition at line 41 of file RadioInsulator.cs.

Referenced by GetPower().

◆ insulationCurve

AnimationCurve RyleRadio.Components.RadioInsulator.insulationCurve = AnimationCurve.Linear(0, 0, 1, 1)

private

A curve that defines insulation between the inner and outer boxes- the x-value is how far between the inner and outer boxes the output is.

Definition at line 47 of file RadioInsulator.cs.

Referenced by GetPower().

◆ outerBoxSize

Vector3 RyleRadio.Components.RadioInsulator.outerBoxSize = Vector3.one

The size of the outer box of the insulator- outside of this box, insulation is 0- between this and the inner box, insulation is between [0 - 1].

Definition at line 28 of file RadioInsulator.cs.

Referenced by Update().

Property Documentation

◆ InnerBoxSizeAdjusted

Vector3 RyleRadio.Components.RadioInsulator.InnerBoxSizeAdjusted

getprivate set

The innerBoxSize but adjusted with transform.localScale in Update()

Definition at line 64 of file RadioInsulator.cs.

Referenced by GetPower(), and Update().

◆ OuterBoxSizeAdjusted

Vector3 RyleRadio.Components.RadioInsulator.OuterBoxSizeAdjusted

getprivate set

The outerBoxSize but adjusted with transform.localScale in Update()

Definition at line 66 of file RadioInsulator.cs.

Referenced by GetPower(), and Update().

◆ ShowApplyToAllOutputs

bool RyleRadio.Components.RadioInsulator.ShowApplyToAllOutputs

getprivate

Shows applyToAllOutputsOutside when the x-value of insulation is greater than 0.

Definition at line 71 of file RadioInsulator.cs.

Referenced by GetPower().

The documentation for this class was generated from the following file:

Runtime/Components/RadioInsulator.cs
